PRODUCT DETAILS
Drilling & Tapping Units
Our drilling and tapping units can be configured as pneumatic or hydraulic controlled, with hydra-brake options, coolant through and many spindle configurations.
Product Code
001M000537
Company Name
Hypneumat Inc
Country of Manufacture
USA
Price
0.00
SKU ID
1050B101
Quantity

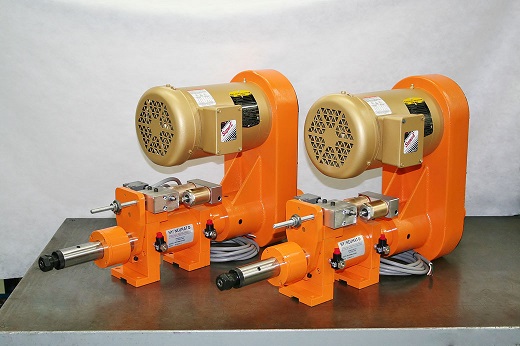

Product DescriptionCustom Paint Image
Features:

Stroke lenths 2" to 20"(50mm to 500mm)
Thrust up to 4122 pounds(1.870 kg)
Torque up to 900 in lbs (102 N-m)


  Drilling & Tapping Units - Pneumatic/Hydraulic
Unit Drill Capacity
Steel
(inches)
Tap Capacity
Steel
(inches)
Stroke
Length
(inches)
Thrust @
100 psi hyd.
(pounds)
Thrust @
200 psi hyd.
(pounds)
Torque
(in-lbs)
S200 1/4" 1/4" 2 & 4" 235 470 38
M200 1/4" 1/4" 2 & 4" 235 470 38
DQ300 1/2" 1/2" 3-1/2 to 12" 466 932 420
M300 1/2" 1/2" 3-1/2 to 8" 466 932 420
SP300 1/2" 1/2" 3-1/2 to 18" 607 1214 420
DQ400 3/4" 3/4" 6" 1107 2214 420
M400 3/4" 3/4" 6" 1107 2214 420
DQ500 1" + 1" + 6 to 12" 1649 4122 900
